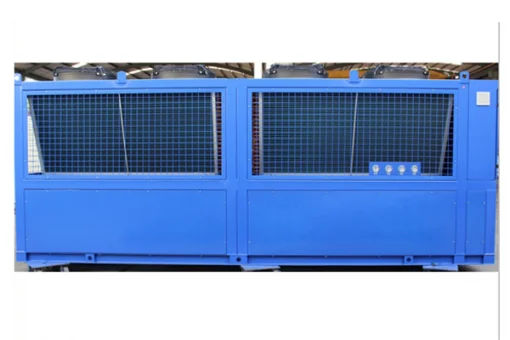

Low temperature chiller manufacturers -- H.Stars 40STE series screw type low temperature air-cooled chiller adopts high efficiency dual screw compressors, equipped with self-made high-efficiency shell and tube heat exchangers and fin type heat exchangers. Heat recovery unit can be configured based on customer needs,which is suitable in pharmaceutical, chemical, electronics, food processing, etc. The unit has 24 standard specifications, cooling capacity range: 60kw~340kw, chilled glycol outlet temperature: 5 °C ~ -35 ° C.
Industrial manufacturing glycol ultra low temperature recirculating air cooled chiller
Specification：
Air-cooled low temperature chiller technical parameters
Refrigerant: R404A Power supply: 380v-3N-50Hz
| Model | Nominal cooling Capacity | Compressor Input Power KW | Capacity control % | Refrigerant charge kg | Condenser | Evaporator | Axial Fan | Operating sound level dB(A) | Shipping weight kg | Operating weight kg | |||||
| kW | USRT | condenser | Chilled glycol flow m³/h | Water side max. pressure Mpa | Water pressure drop Kpa | Air flow x 1000 m³/h | Power kw x number | ||||||||
| Inlet outlet pipe diameter in | |||||||||||||||
| 40STE-S140ADSL4 | 55.6 | 15.8 | 40.8 | 0,66,100 | 30 | Copper tube with corrugated aluminum fins | 2-1/2’’ | 10.1 | 1 | 28 | 40.2 | 2.0*2 | 68 | 1260 | 1370 |
| 40STE-S200ADSL4 | 78.4 | 22.3 | 56.9 | 0,50,75,100 | 42 | 3’’ | 14.3 | 1 | 55 | 57 | 1.2*4 | 68 | 1900 | 2080 | |
| 40STE-S260ADSL4 | 104.8 | 29.8 | 75.1 | 56 | 3’’ | 19.1 | 1 | 64 | 80 | 2.0*4 | 72 | 2700 | 2920 | ||
| 40STE-S300ADSL4 | 124 | 35.3 | 87.7 | 68 | 3’’ | 22.6 | 1 | 66 | 80 | 2.0*4 | 72 | 2780 | 3020 | ||
| 40STE-S340ADSL4 | 145.6 | 41.4 | 101.7 | 80 | 4’’ | 26.5 | 1 | 42 | 85 | 1.2*6 | 72 | 3220 | 3380 | ||
| 40STE-S370ADSL4 | 156.8 | 44.6 | 110.4 | 86 | 4’’ | 28.5 | 1 | 54 | 121 | 2.0*6 | 72 | 3240 | 3620 | ||
| 40STE-S410ADSL4 | 170.4 | 48.5 | 119.6 | 95 | 4’’ | 31 | 1 | 44 | 121 | 2.0*6 | 72 | 3500 | 3880 | ||
| 40STE-S460ADSL4 | 195.2 | 55.5 | 138.4 |
0,25,37.5,50,62. 5,75,87.5,100 |
115 | 4’’ | 35.5 | 1 | 55 | 114 | 1.2*8 | 75 | 4780 | 4950 | |
| 40STE-S520ADSL4 | 209.6 | 59.6 | 150.2 | 124 | 4’’ | 38.1 | 1 | 65 | 161 | 2.0*8 | 75 | 4850 | 5130 | ||
| 40STE-S600ADSL4 | 248 | 70.5 | 175.4 | 135 | 4’’ | 45.1 | 1 | 54 | 161 | 2.0*8 | 75 | 5360 | 5580 | ||
| 40STE-S680ADSL4 | 291.2 | 82.8 | 203.4 | 161 | 4’’ | 53 | 1 | 65 | 170 | 1.6*12 | 75 | 5660 | 6100 | ||
| 40STE-S740ADSL4 | 313.6 | 89.2 | 220.8 | 175 | 4’’ | 57.1 | 1 | 54 | 241 | 2.0*12 | 75 | 5720 | 6040 | ||
Customized Design
The industrial low temperature chiller can be designed according to the dimension of the machine room, and it can be delivered to the site by CKD (completely knock down ) or SKD(semi knock down) or the whole unit. Different power supply are available according to different countries and regions ,such as high-voltage non-standard chiller .
Heat Recovery Unit (optional)
Own a heat recovery patent.
Waste heat generated in the refrigeration process is recovered by H.Stars patented heat recovery unit to provide free hot water up to 55°C. Boiler replacement to save operating cost.
Professional Design
According to user's requirements, H.Stars provides professional advice and selects the most suitable equipment which fits perfectly for each project. Different materials of heat exchange will be recommended to avoid corrosion and leakage according to user’s refrigeration medium used in the project.
Energy-saving Design (optional)
The variable frequency drive technology greatly improves the Partial load energy efficiency of the chiller ;
Evaporative cooling technology with function of high heat exchange efficiency, low investment and save water.
Intelligent Operation
Adopting Microcomputer controller, precise control, automatic loading and unloading with multiple functions such as time setting, fault record remote or central monitor. PLC is available for option.
Precision Protection
The Glycol low temperature Chiller electrical protection system includes: reverse protection, phase loss protection, compressor and fan overcurrent protection, low temperature protection, high and low voltage protection, water flow protection, etc.
Water Temperature
High temperature chiller: chilled glycol outlet 0°C;
Medium and low temperature chiller: chilled glycol outlet -20°C;
Ultra-low temperature chiller: chilled water outlet -35°C.
Display function
The chiller control display can collect various states data of the chiller, and can display operation time, compressor output, inlet and outlet water temperature, and operating status.
Air conditioning heat recovery
The heat recovery technology is to recover part or all of the same amount of heat energy from the chiller while it is cooling, to provide customers with a large amount of free hot water at 45~55 °C, suitable for electronics, chemical, pharmaceutical, food processing industries. Environmental protection and energy saving.
The heat recovery technology is to recover part or all of the same amount of heat energy from the chiller while it is cooling, to provide customers with a large amount of free hot water at 45~55 °C, suitable for electronics, chemical, pharmaceutical, food processing industries. Environmental protection and energy saving.
Heat recovery
H.Stars Group has been engaged in R&D of heat recovery technology and application, accumulated a lot of experience in thermal energy recycling, and has a national patent for heat recovery. Provide customers with free hot water during the project , cost and energy saving. It can reduce the heat pollution caused by condensation heat to the environment, and reduce the running cost and noise of the cooling tower.
Brief introduction of heat recovery technology
The heat recovery technology is an air-conditioning energy-saving patented invention. The principle is that when the unit is cooled, the heat originally discharged into the atmosphere can be recovered and converted into hot water, which can be used for living hot water, process heating. During heat recovery process, only the circulating water pump need to be installed, a large amount of free hot water is provided. At the same time, the cooling capacity of the unit is increased by about 5%, which is suitable for industrial production processes and commercial places with large demand.
Winter energy-saving device
In the transitional season and winter, the outdoor ambient temperature is lower than the process water temperature, taking advantage of the cold air outside to cool the process water without turning on the compressor. The dry cooler uses this principle to achieve the real non-compressor cooler. When the ambient temperature is lower than the process water temperature, the process water run through the interior of the dry cooler heat exchange tube. The fan is used to control the flow of outside cold air to cool the process water, and to ensure that the process water temperature meets the set requirements. It meets the requirements and saves 90% energy.
Cloud service (remote monitoring)
Central A/C cloud service system
Cloud service value:
Remote control adjustment
Remote monitoring
Remote upgrade
Fault warning
Remote diagnosis
Product distribution management
Historical data analysis
Product show：
Our Services：
1. After sale service: All of our machine provide long time after-sale service .
2. We accept OEM orders, processing according to buyer’s samples or drawing
3. On-time shipment
4. Product quality protection
5. Payment protection.
Application field：Industrial and commercial field
Packaging & Shipping：
FAQ：
A. Technical Support
1. We'll help you select the most suitable models after accurate calculation.
2. We can design and develop new products based on your requirement.
3. We'll provide you professional technical support on refrigeration & electronic to help you solve installation, debugging & operational problems.
4. Spare parts and technical support will be provided within & after the warranty period.
5. We'll arrange free training courses to your team at our factory if needed.
B. After-sales Service
1. Technical support for your installation, operation and maintenance.
2. 12 months’ warranty,
3. Reasonable prices for purchased spare parts.
4. Update you our latest products information & price policy every year.
C. Customized service
1. We can provide you OEM/ODM service
2. We can develop new product & technology as per your requirement
